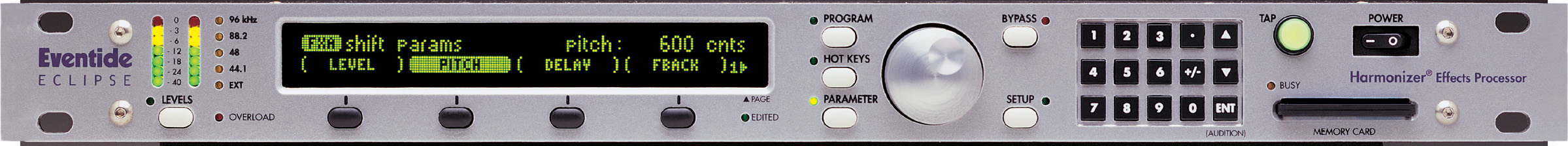

EVENTIDE ECLIPSE v.4 - Цифровой гармонайзер

Арт.: Я0003900

EVENTIDE ECLIPSE v.4 - Цифровой процессор звуковых эффектов-гармонайзер. 90 наших лучших алгоритмов, процессор мультиэффектов с двумя процессорами, оптимизированный для "живых" представлений, в 5 раз превосходит возможности H3000, 390 предварительных настроек

По запросу

Analog Input (XLR)
Impedance 20 kOhms
Full Scale Input Level 26 dBu
Dynamic Range >104 dB
Signal to Noise Ratio >104 dB
THD+N <0.003 @ 1 kHz, -3 dBFS
Crosstalk <-100 dB @ 20 Hz to 20 kHz, - 1 dBFS
Frequency Response: +0/-0.1 dB @ sample rate:
44.1 kHz: 20 Hz - 20kHz
48 kHz: 20Hz -22kHz
88.2 kHz: 20Hz - 41kHz
96kHz: 20Hz - 44kHz

Analog Output (XLR)
Impedance <50 Ohms
Full Scale Input Level 26 dBu
Dynamic Range >108 dB
Signal to Noise Ratio >108 dB
THD+N <0.003 @ 1 kHz -3 dBFS
Crosstalk <-100 dB @ 20 Hz to 20 kHz,-1 dBFS
Frequency Response +0/-0.1dB @ sample rate:
44.1 kHz: 10Hz - 20kHz
48 kHz: 10Hz - 22kHz
88.2 kHz: 10Hz - 41kHz
96 kHz: 10Hz - 44kHz

Other Connections
Remote Control Inputs Up to 2 foot pedals (or 5V control inputs) or 6 foot switches or combination
MIDI Connections 5-pin DIN output and thru
7-pin DIN input with output capability and external power jack
Compact Flash Interface Supports Type I and Type II Compact Flash Cards for data storage

Physical
Power 40 watts, 100-240 VAC, 50/60 Hz
Size Inches: 1.75h x 19w x 10.5d
CM: 4.5h x 48.3w x 26.7d
Weight 9 pounds (4.1Kg) 12
pounds shipping weight (5.5 Kg)
Digital Inputs/Outputs 2 Channels of AES/EBU, S/PDIF (Optical or Coaxial) or ADAT Lightpipe
Sample Rates 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz, Word Clock, AES, S/PDIF, ADAT
